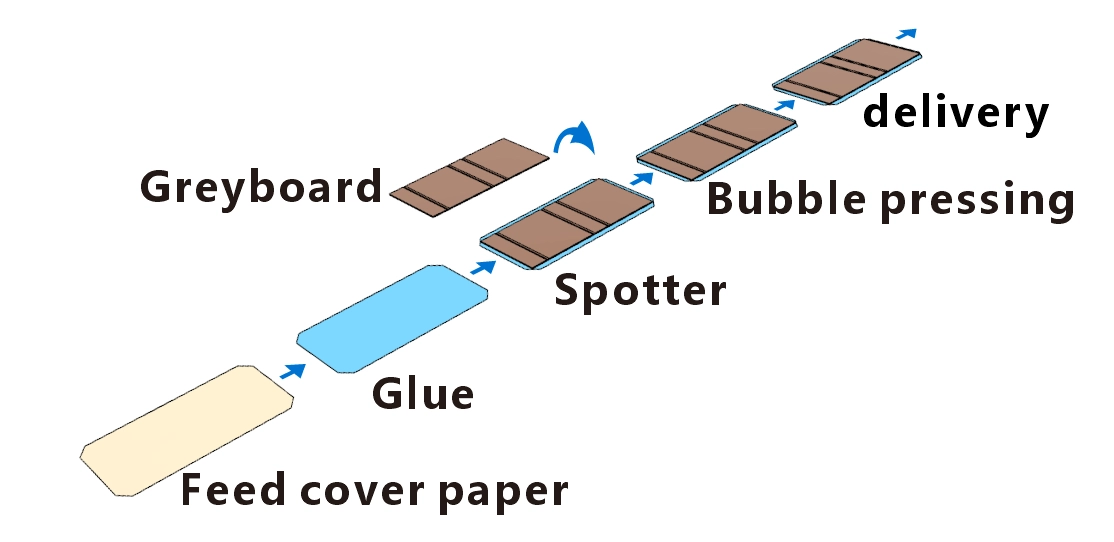

Gluing & Positioning Series is suitable for the positioning process production of various rigid box positioning, also be used for positioning process production of cardboard and paper.Larger size hard cover can be produced (see parameters) and inner linings can be attached (optional function).

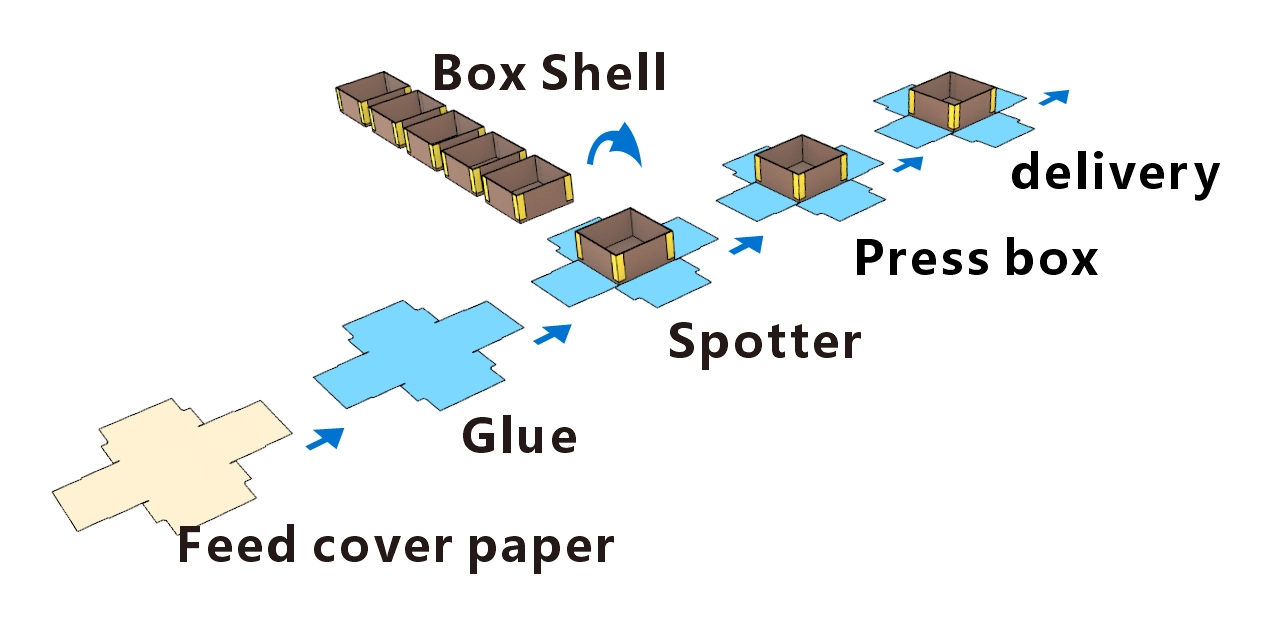

This machine adopts PLC and touch screen manmachine control system and camera tracing system to realize automatic completion of paper feeding, gluing and positioning. In feeder, the glue and conveyor belts are driven by servo, which can be infinitely variable, high precision, easy to adjust, and save time. The positioning part adopts the camera tracing system and the robot grasping parts to improve the positioning accuracy and efficiency, the error range is ±0.05mm, and the speed is faster.
|
Model |
HM-600E |
HM-600D |
HM-600G |
HM-600N |
HM-ZD350FX |
HM-ZD350E |
|
|
Paper Size B=Length, A=Width |
B (Max.) |
1000mm |
1000mm |
850mm |
500mm |
600mm |
600mm |
|
B(Min.) |
180mm |
180mm |
180mm |
180mm |
110mm |
110mm |
|
|
A(Max.) |
610mm |
610mm |
610mm |
350mm |
450mm |
455mm |
|
|
A (Min.) |
95mm |
95mm |
95mm |
95mm |
50mm |
45mm |
|
|
Thickness |
80-160gsm |
80-160gsm |
80-160gsm |
80-160gsm |
80-160gsm |
80-160gsm |
|
|
Box Shell Size (L=Length, W=Width, H=Height) |
L (Max.) |
600mm |
600mm |
600mm |
350mm |
350mm |
350mm |
|
L (Min.) |
120mm |
100mm |
60mm |
120mm |
45mm |
45mm |
|
|
W (Max) |
400mm |
400mm |
400mm |
200mm |
250mm |
250mm |
|
|
W(Min.) |
50mm |
50mm |
50mm |
50mm |
45mm |
35mm |
|
|
H(Max) |
190mm |
190mm |
130mm |
150mm |
120mm |
120mm |
|
|
H(Min) |
12mm |
12mm |
12mm |
15mm |
12mm |
10mm |
|
|
Grey board Size (L=Length, W=Width, ) |
L(Max.) |
960mm |
960mm |
|
|
550mm |
|
|
L(Min.) |
120mm |
120mm |
|
|
50mm |
|
|
|
W(Max.) |
500mm |
500mm |
|
|
300mm |
|
|
|
W(Min.) |
80mm |
80mm |
|
|
50mm |
|
|
|
Paper Pile Height Max |
350mm |
350mm |
320mm |
300mm |
300mm |
300mm |
|
|
Glue Tank Volume |
30L |
30L |
30L |
30L |
14L |
20L |
|
|
Air Supply |
100L/min, 0.8Mpa |
100L/min, 0.8Mpa |
100L/min, 0.8Mpa |
100L/min, 0.8Mpa |
100L/min, 0.8Mpa |
100L/min, 0.8Mpa |
|
|
Speed |
≤25pcs/min |
≤25pcs/min |
≤30pcs/min |
≤44pcs/min |
≤25pcs/min |
≤30pcs/min |
|
|
Total Power/Voltage |
11kW/AC380V |
15kW/AC380V |
14kW/AC380V |
15kW/AC380V |
15kW/AC380V |
14kW/AC380V |
|
|
Power Consumption |
3kW/h |
4kW/h |
4kW/h |
4kW/h |
4kW/h |
4kW/h |
|
|
Net Weight |
2500kg |
2000kg |
2000kg |
2100kg |
1900kg |
1800kg |
|
|
Machine Dimension |
7190 x 2600 x 1900mm |
7190 x 2600 x 1900mm |
7190 x 3600 x 1900mm |
7350x3550x1900mm |
6700x2200x1900mm |
6700x3000x2200mm |
|
