HM-DC6600/6610/6615 Automatic Rigid Box Machine (（Lid & Base Box Produce Synchronized）)

Short Description:

Features and function:

Suit to all kinds of rigid boxes in mass production;

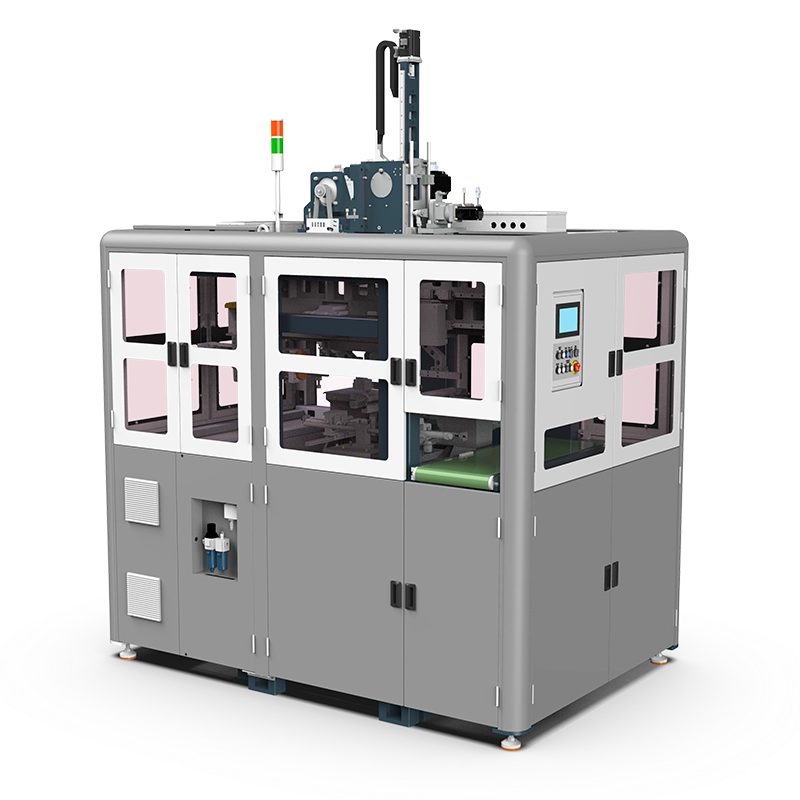

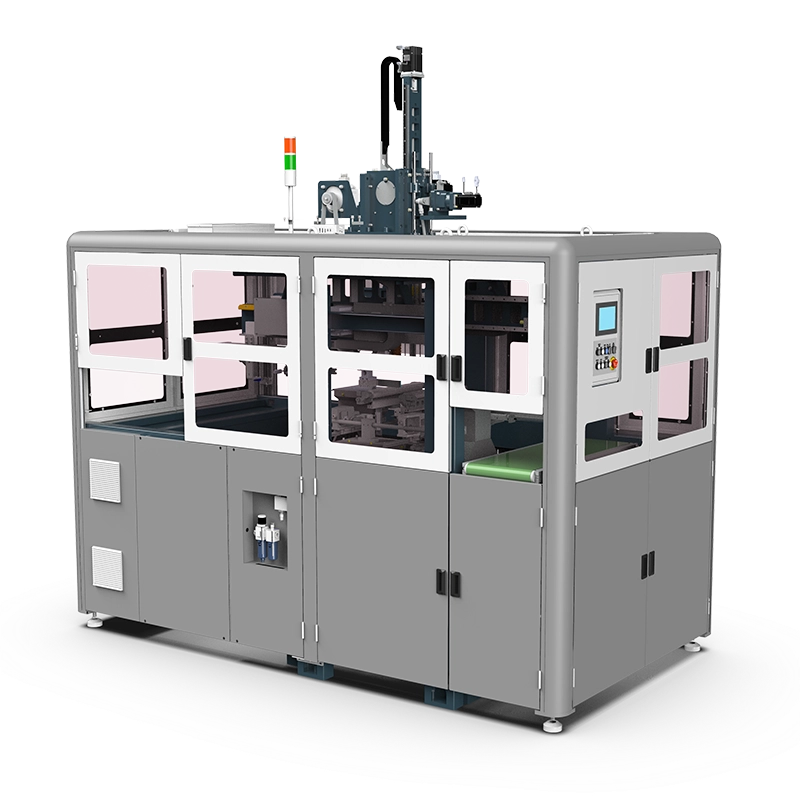

Dual-station forming, capable of completing the forming of top boxes and bottom boxes simultaneously；
Parametric intelligent adjustment;
The long side and short side are layered and formed;

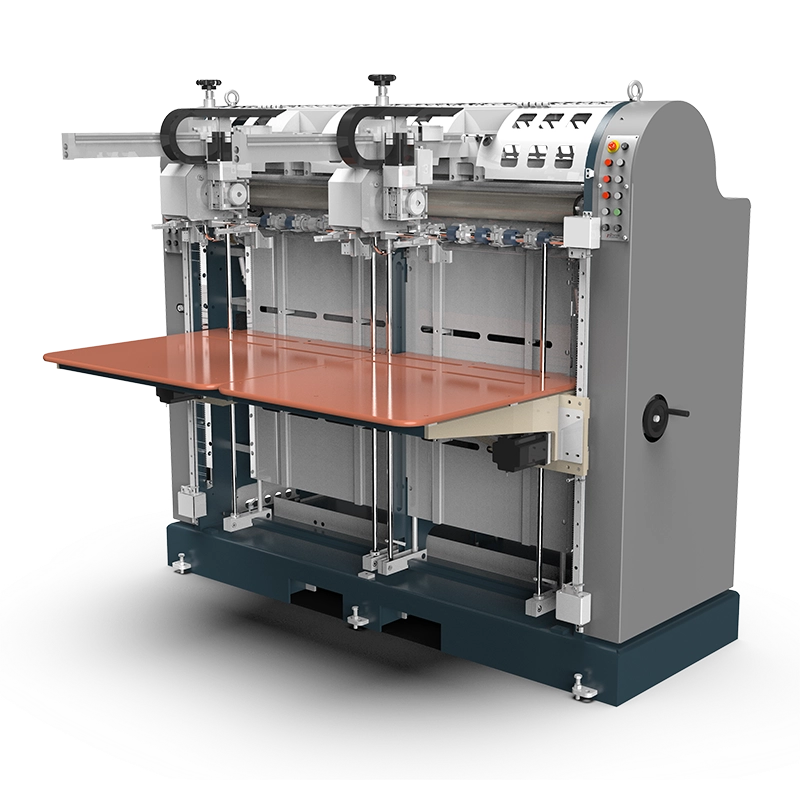

Able to convey the paper and gray board of top boxes and bottom boxes at the same time;
The box-out direction is parallel to the main conveyor belt;
24-hour glue timing heating function;
Wrapper can input 300 product formulas;

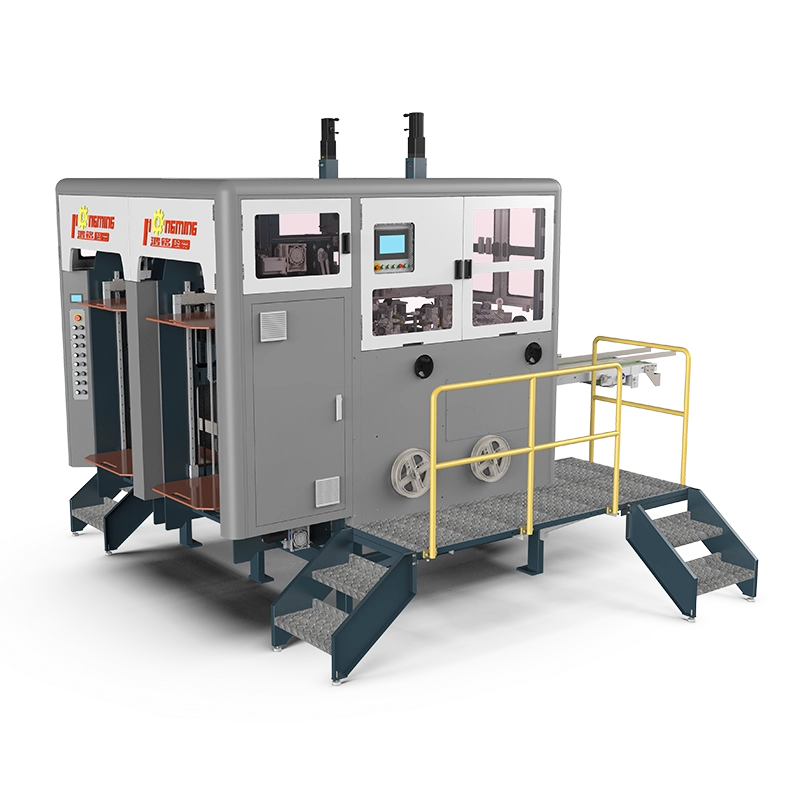

Corner pasting part with independent man-machine control and heating system;

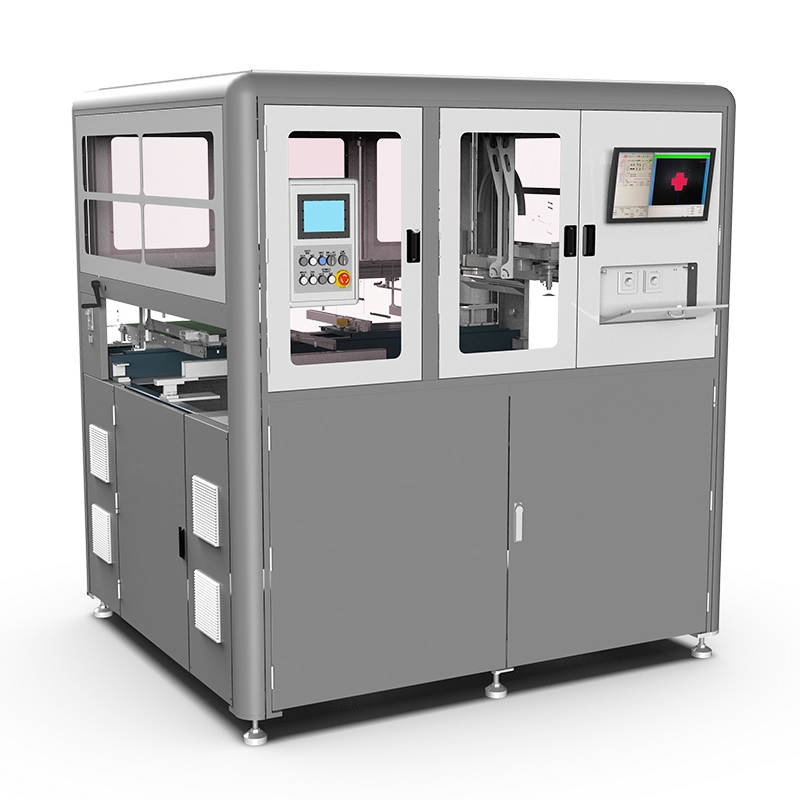

Multifunctional Robot Vision Image Positioning System (spotting accuracy ±0.05mm);
Automatic box lifting and extracting device for boxes;
Parameters adopts computer digital setting ;
Auto error stop and display.

Product Description

Model		HM-DC6600	HM-DC6610	HM-DC6615
Grey board Size D=Length, C=Width	Width (Max.)	420mm	600mm	660mm
	Width(Min.)	60mm	84mm	124mm
	Length(Max.)	420mm	500mm	560mm
	Length (Min.)	50mm	74mm	84mm
	Thickness T	1-3mm	1-3mm	1-3mm
Paper Size B=Length, A=Width	Length (Max.) B	460mm	640mm	700mm
	Length (Min.) B	95mm	180mm	180mm
	Width (Max) A1	460mm	540mm	600mm
	Width (Max) A2	380mm	460mm	520mm
	Width(Min.) A	60mm	90mm	95mm
	Thickness	80-160gsm	80-160gsm	80-160gsm
Paper Corner Edge	E	10-90mm	10-90mm	10-90mm
Finished Box Size	L(Max.)	300mm	400mm	600mm
	L(Min.)	40mm	60mm	100mm
	W(Max.)	300mm	300mm	400mm
	W(Min.)	25mm	50mm	50mm
	H(Max.)	120mm	140mm	150mm
	H(Min.)	10mm	12mm	12mm
Die Stoke		10-80mm	10-80mm	10-80mm
Paper Stacker High Max.		750mm	750mm	750mm
reyboard Stacker High Max.		850mm	850mm	850mm
Glue Tank Volume		35L	35L	35L
Air Supply		460L/min, 0.8MPa	460L/min, 0.8MPa	460L/min, 0.8MPa
Speed		≤60pcs/min	≤60pcs/min	≤60pcs/min
Power/Voltage		58kW/AC380V	60kW/AC380V	64kW/AC380V
Power Consumption		14kW/h	15kW/h	16kW/h
Net Weight		8400kg	8700kg	9000kg
Machine Dimension		9200 x 5500 x 3000mm	9600 x 5700 x 3300mm	9200x5500x3300mm

Remark:

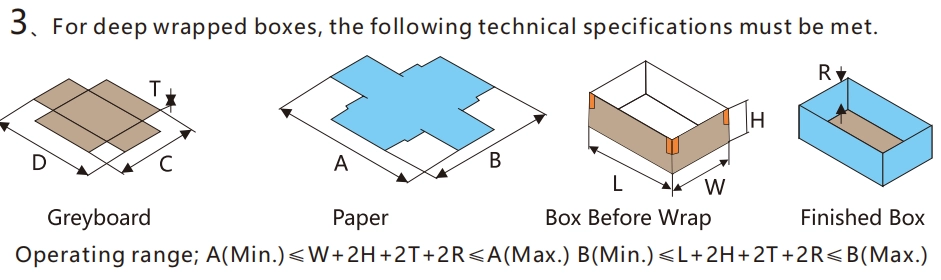

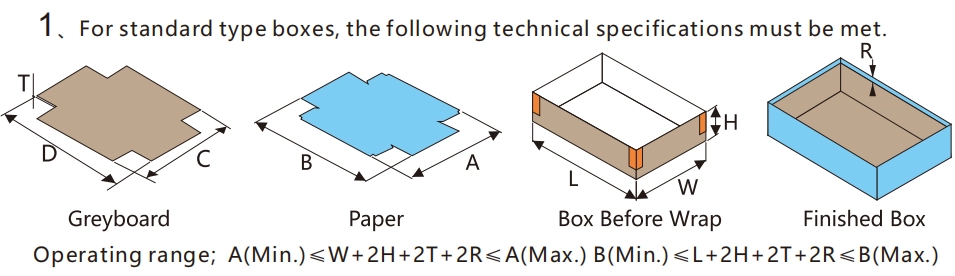

The Finished Box Max. sizes are determined by paper size. A(Min.)≤W+2H+2T+2R≤A(Max.); B(Min.)≤L+2H+2T+2R≤B(Max.)
Either the Max. Sizes or the Min. Sizes can not be fulfilled on the same box.

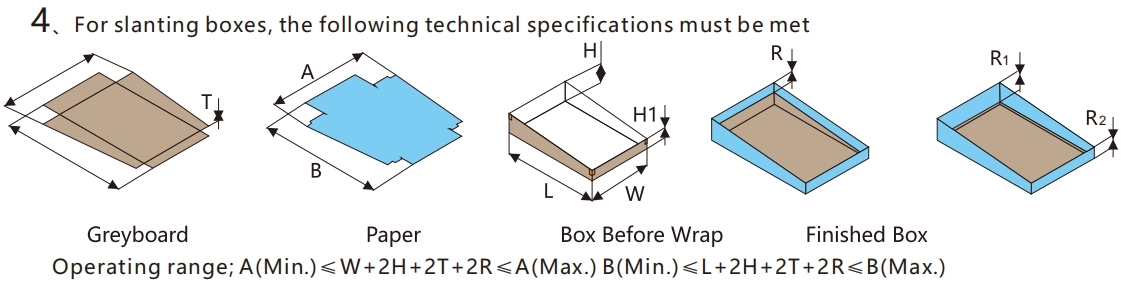

Slanting boxes which coverpaper folding into the bottom, it need additional bubble pressing machine to finish (start from the lowest point the inner boxes, draw a line to the high-side according to the slanting boxes angles, if the beleved folding coverpaper lower than this line then it called folding-into the bottom)
The production speed of the rigid box machine is determined by the box size, the paper and the greyboard materials.
eller doesn’t provide air compressor. (8atm=0.808MPa, 7.5kW compressor is needed).
