HM-DS3046/4354/6461/6471/6481 AUTOMATIC SMART RIGID BOX MACHINE (High-Speed)

Short Description:

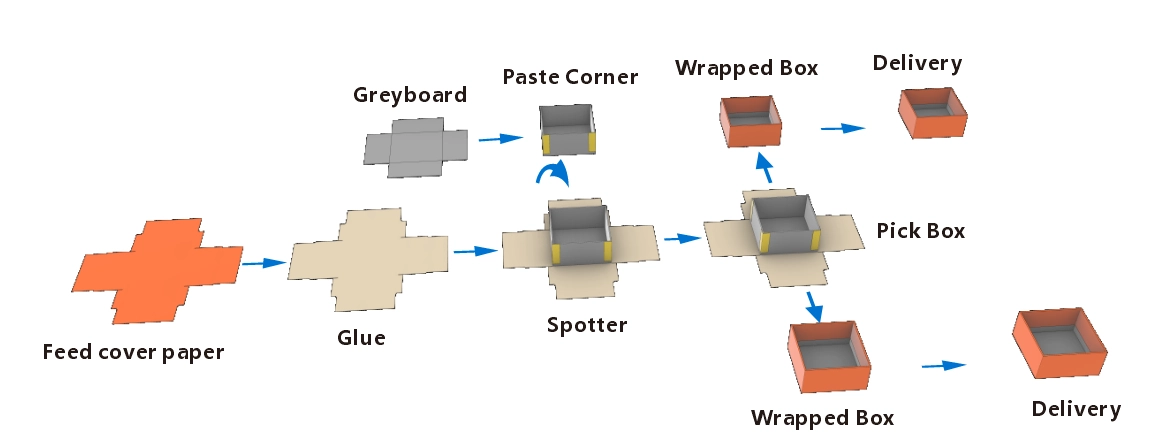

Features and function:

Suit to all kinds of rigid boxes in mass production;
Parameters adopts computer digital setting ;
Auto error stop and display;

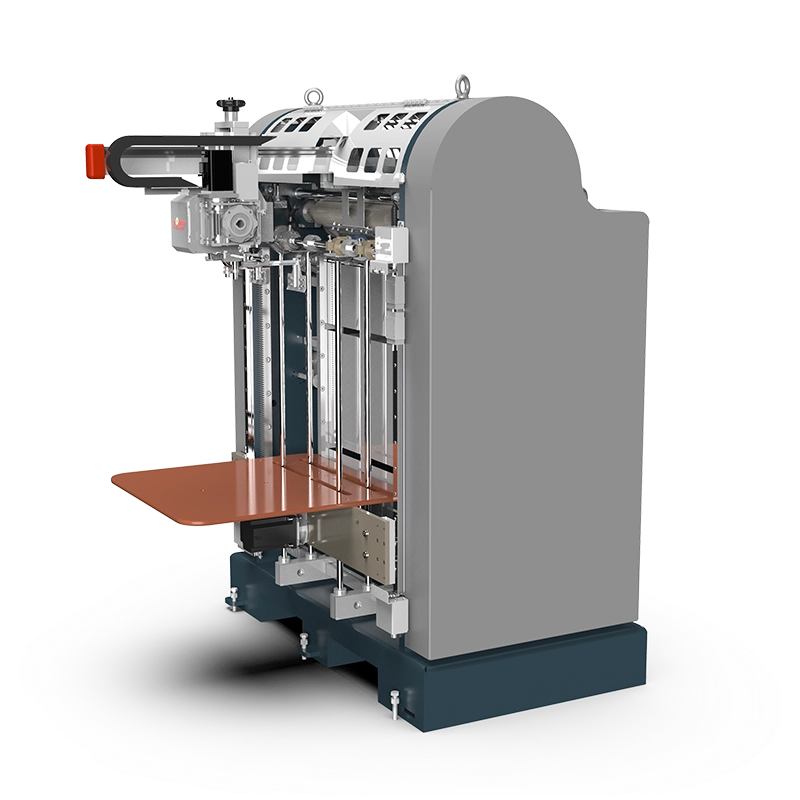

Automatic feed paper and greyboard;
24-hour glue timing heating function;
Wrapper can input 300 product formulas;

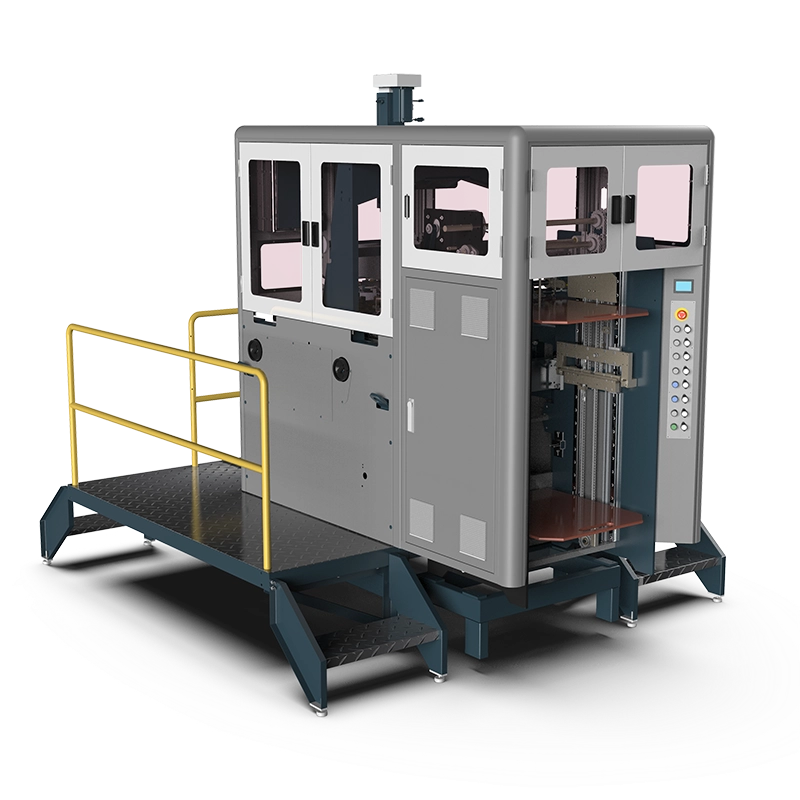

Corner pasting part with independent man-machine control and heating system;

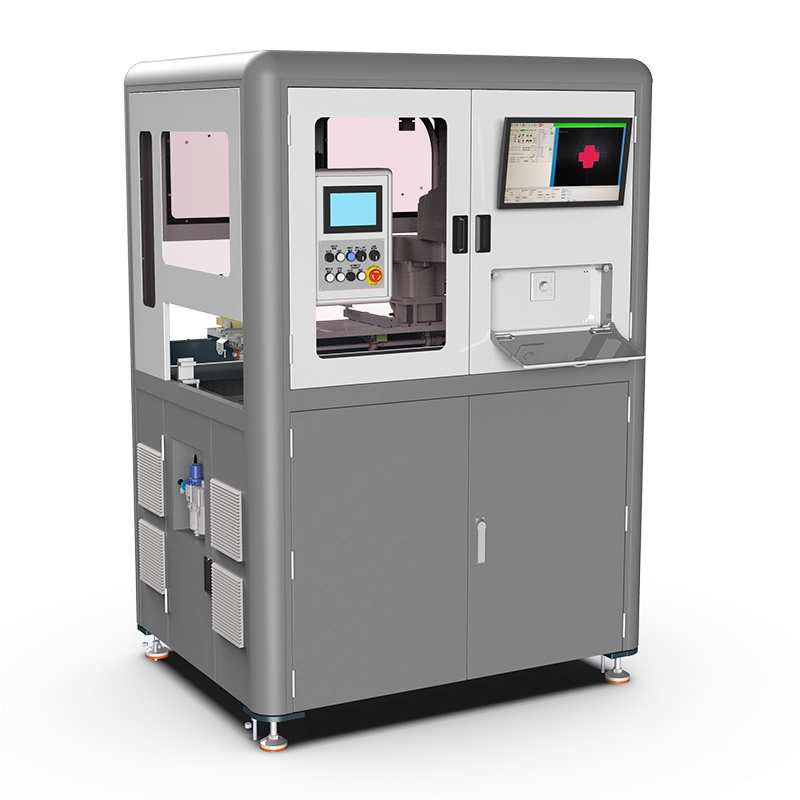

Spotter by camera tracing system and SCARA (Selective Compliance Assembly Robot Arm)
Wrapper can automatic lift and wrap box;
Automatic control system for glue viscosity(optional)；
Digital setting with memory system(optional)；

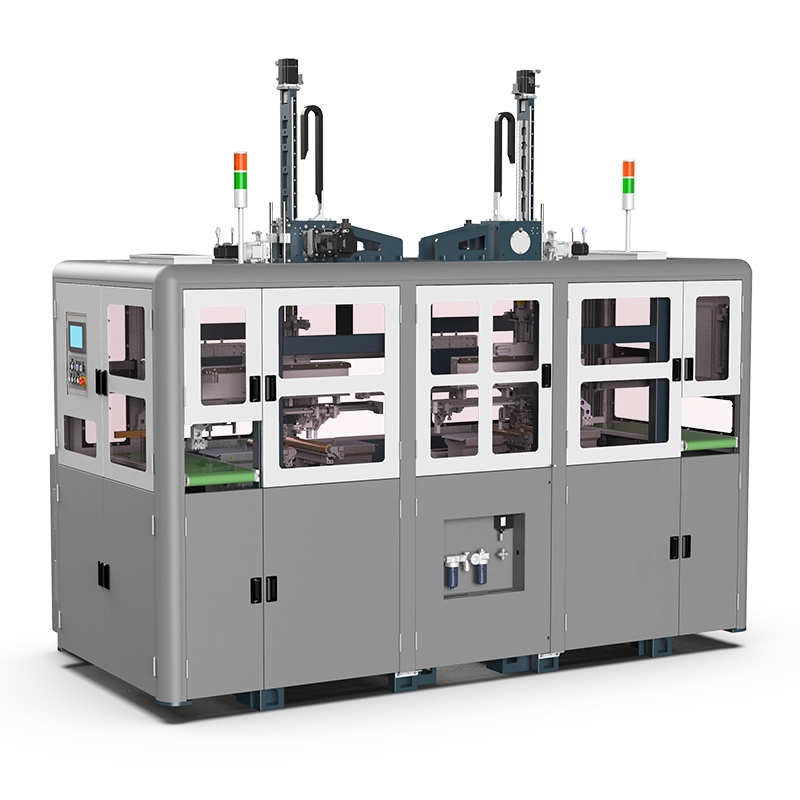

The long side and short side are layered and formed;
Main Slider and pull mold section synchronized;
Bottom mould use Piston type；
The box-out direction is parallel to the main conveyor belt.

Product Description

Model		HM-DS3046	HM-DS4354	HM-DS6461
Grey board Size D=Length, C=Width	Width (Max.)	420mm	600mm	820mm
	Width(Min.)	60mm	84mm	124mm
	Length(Max.)	420mm	500mm	580mm
	Length (Min.)	50mm	74mm	92mm
	Thickness T	1-3mm	1-3mm	1-3mm
Paper Size B=Length, A=Width	Length (Max.)	460mm	640mm	850mm
	Length (Min.)	95mm	180mm	180mm
	Width (Max)	460mm	540mm	610mm
	Width(Min.)	60mm	90mm	95mm
	Thickness	80-160gsm	80-160gsm	80-160gsm
Paper Corner Edge	E	10-110mm	10-110mm	10-125mm
Finished Box Size	L(Max.)	300mm	400mm	600mm
	L(Min.)	40mm	60mm	100mm
	W(Max.)	300mm	300mm	400mm
	W(Min.)	25mm	50mm	50mm
	H(Max.)	120mm	140mm	150mm
	H(Min.)	10mm	10mm	12mm
Die Stoke		100mm	140mm	100mm
Paper Stacker High Max.		600mm	650mm	750mm
reyboard Stacker High Max.		700mm	750mm	850mm
Glue Tank Volume		32L	35L	35L
Air Supply		460L/min, 0.8MPa	460L/min, 0.8MPa	460L/min, 0.8MPa
Speed		≤45pcs/min	≤45pcs/min	≤45pcs/min
Power/Voltage		46kW/AC380V	48kW/AC380V	51kW/AC380V
Power Consumption		11kW/h	12kW/h	13kW/h
Net Weight		6800kg	7000kg	7200kg
Machine Dimension		5400 x 4500 x 3000mm	5600 x 4900 x 3000mm	7100x5500x3300mm

Remark:

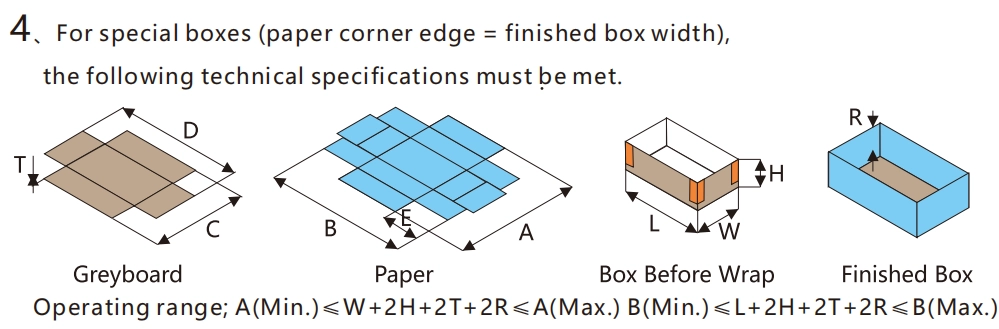

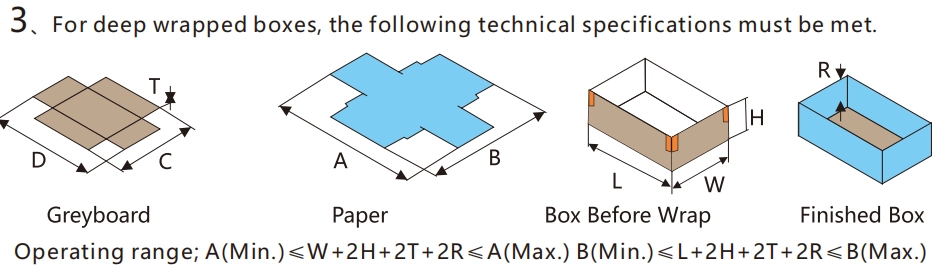

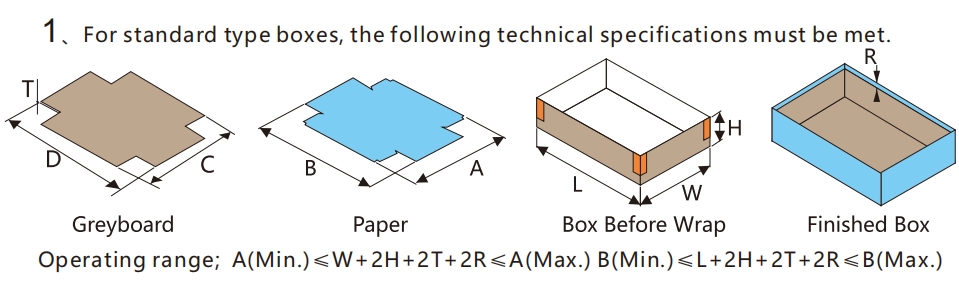

The Finished Box Max. sizes are determined by paper size. A(Min.)≤W+2H+2T+2R≤A(Max.); B(Min.)≤L+2H+2T+2R≤B(Max.)
Either the Max. Sizes or the Min. Sizes can not be fulfilled on the same box.
If finished box height is 110mm, the length＞80mm; when the length ＜80mm, the finished box height ≤90mm
The production speed of the rigid box machine is determined by the box size, the paper and the greyboard materials.
Seller doesn’t provide air compressor. (8atm=0.808MPa, 7.5kW compressor is needed).
