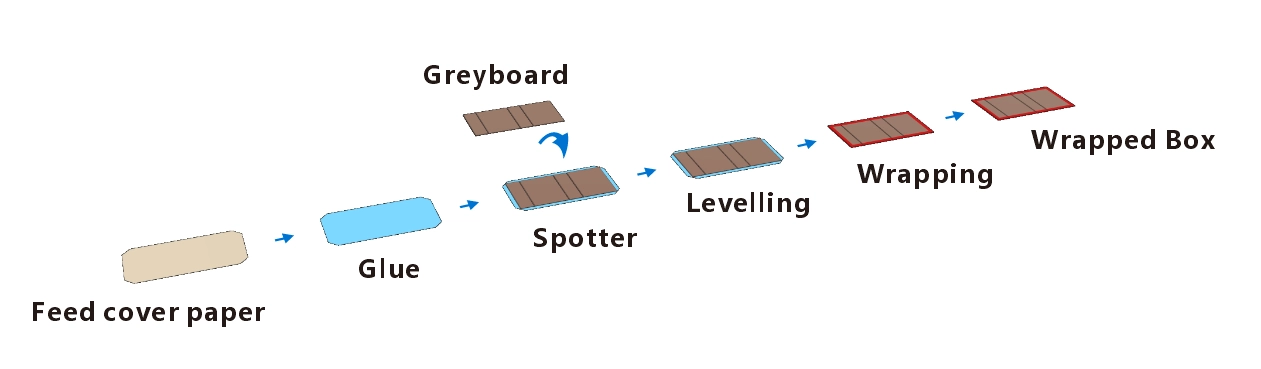

This precision-engineered Case Making system revolutionizes hardcover production. It is specifically designed for creating durable and high-quality hard covers, streamlining the entire process from board feeding to final pressing.
With fully computerized controls, the machine ensures each cover is perfectly calibrated for impeccable sharp corners and a flawless, tight finish.
The automated workflow significantly boosts output and consistency, making it an essential solution for producing premium hardcover books, albums, and specialty packaging with remarkable efficiency and precision.
|
Model |
HM-FM850 (Hardcover) |
HM-TN850 （Hardcover+Lining） |
HM-600H+HM-PK850D (Hardcover) |
|
|
Paper Size B=Length, A=Width |
B (Max.) |
1000mm |
1000mm |
1300mm |
|
B(Min.) |
180mm |
180mm |
180mm |
|
|
A(Max.) |
610mm |
610mm |
800mm |
|
|
A (Min.) |
95mm |
95mm |
95mm |
|
|
Thickness |
80-160gsm |
80-160gsm |
80-160gsm |
|
|
Grey board Size (L=Length, W=Width, ) |
L(Max.) |
960mm |
800mm |
1250mm |
|
L(Min.) |
120mm |
160mm |
120mm |
|
|
W(Max.) |
500mm |
500mm |
760mm |
|
|
W(Min.) |
80mm |
120mm |
80mm |
|
|
Paper Pile Height Max |
350mm |
350mm |
350mm |
|
|
Glue Tank Volume |
30L |
30L |
30L |
|
|
Air Supply |
100L/min, 0.8Mpa |
100L/min, 0.8Mpa |
100L/min, 0.8Mpa |
|
|
Speed |
≤25pcs/min |
≤25pcs/min |
≤22pcs/min |
|
