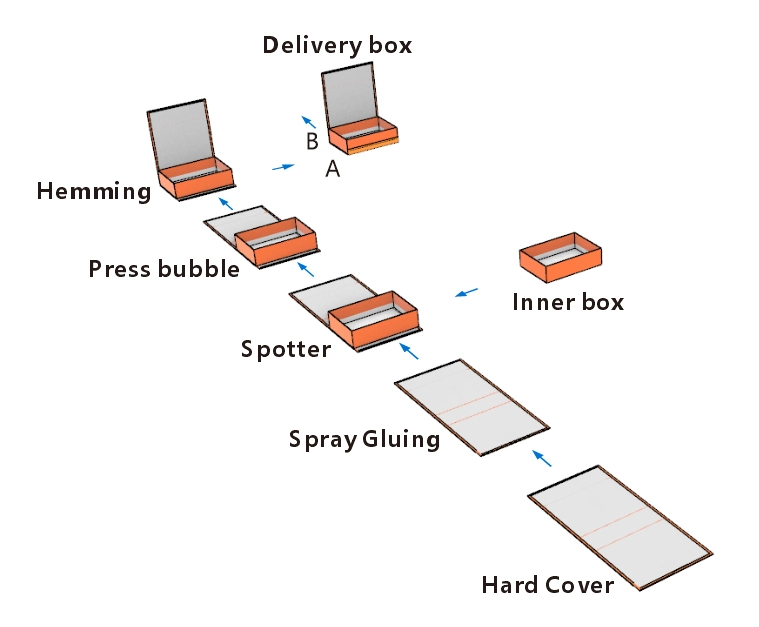

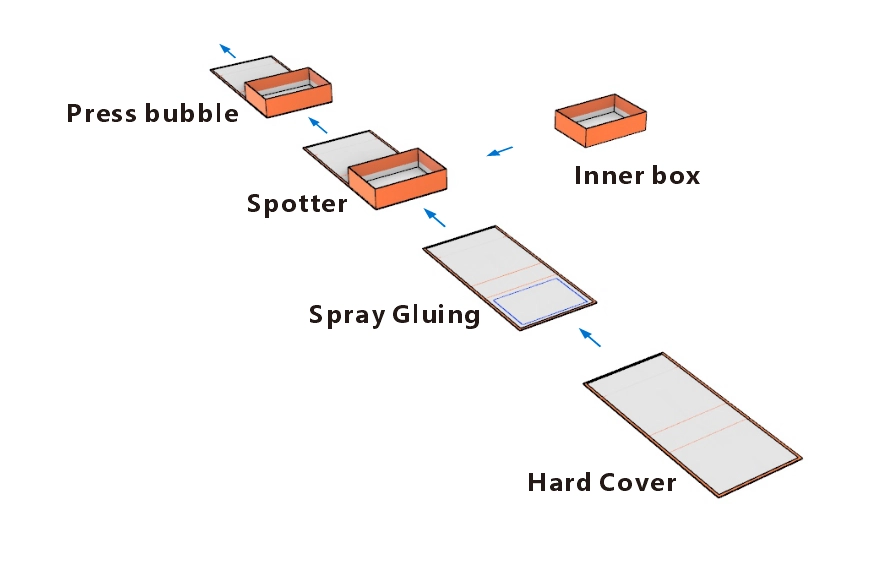

This machine is designed for the automatic glue spraying and bonding process of rigid boxes and hardcovers. It automatically stacks processed hardcovers, pushes and pulls them into position for precise glue spraying. Using a mechanical arm controlled by a servo motor, the nozzle sprays glue in various shapes based on box design. With PLC control and a user-friendly touch screen, this machine is efficient, easy to operate, and enhances production automation, offering high stability and cost-effectiveness.
| Model | HM-PZ850 | HM-HJ9545C Multi-function | |
| Book-Box | |||
| Hard Cover (B=Length, A=Width) | B (Max.) | 800mm | 900 |
| B(Min.) | 120mm | 120 | |
| A(Max.) | 500mm | 450 | |
| A (Min.) | 80mm | 110 | |
| Finished Box Size | B (Max.) | 500mm | 450 |
| (L=Length, W=Width,H=Height) | |||
| B(Min.) | 80mm | 80 | |
| A(Max.) | 380mm | 450 | |
| A (Min.) | 80mm | 70 | |
| H(Max.) | 90mm | 70 | |
| H (Min.) | 15mm | ||
| Frame Size (L=Length, W=Width ) | B (Max.) | ||
| B(Min.) | |||
| A(Max.) | |||
| A (Min.) | |||
| Air Supply | 0.5Mpa | 0.5Mpa | |
| Speed | ≤20-25pcs/min | ≤20-25pcs/min | |
| Hot Melt Machine Volume | 5KG | 5KG | |
| Maximum Length of Glue | 500/500mm | 500/500mm | |
| Total Power/Voltage | 5.6kW/AC380V | AC220V | |
| Power Consumption | 1.5kW/h | 1.5kW/h | |
| Net Weight | 2000kg | 1300kg | |
| Machine Dimension | 4500 x 2880 x 1960mm | 4687 x 2650 x 1950mm | |
