HM-SC4354/6461/6471/6481 AUTOMATIC SMART RIGID BOX MACHINE

Short Description:

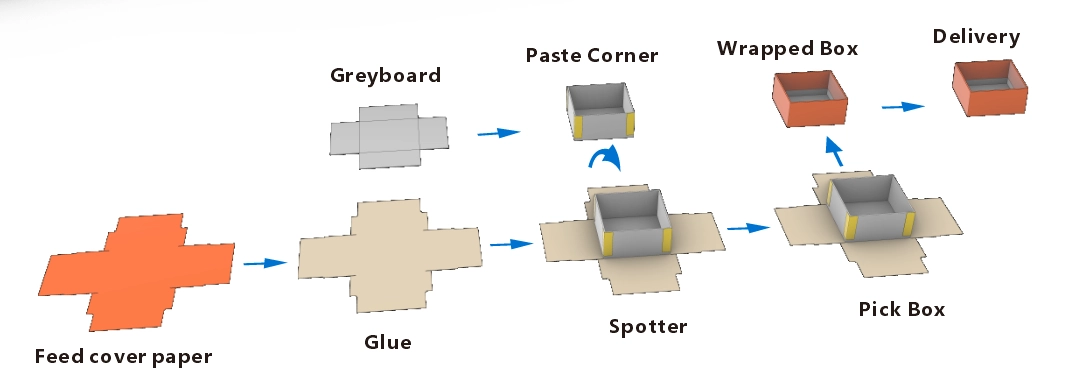

Features and function:

Suit to all kinds of rigid boxes in mass production;
Single Wrapper;
Parametric intelligent adjustment;

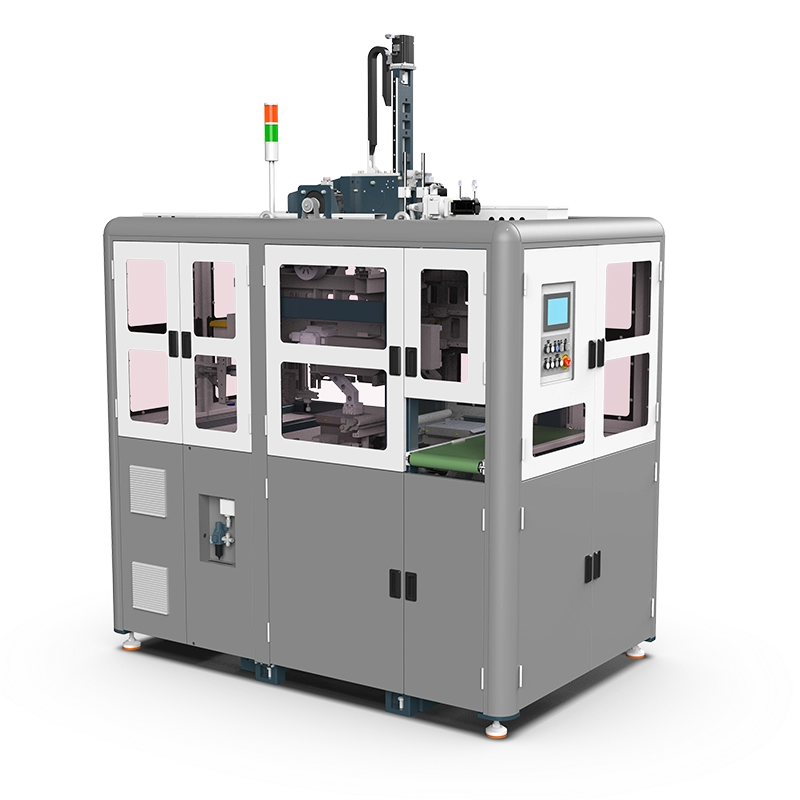

The long side and short side are layered and formed;
The cam box can participate in motion control as a whole;
Parameters adopts computer digital setting;
The box-out direction is parallel to the main conveyor belt;
Auto error stop and display;
Automatic feed paper and greyboard;
24-hour glue timing heating function;
Wrapper can input 300 product formulas;

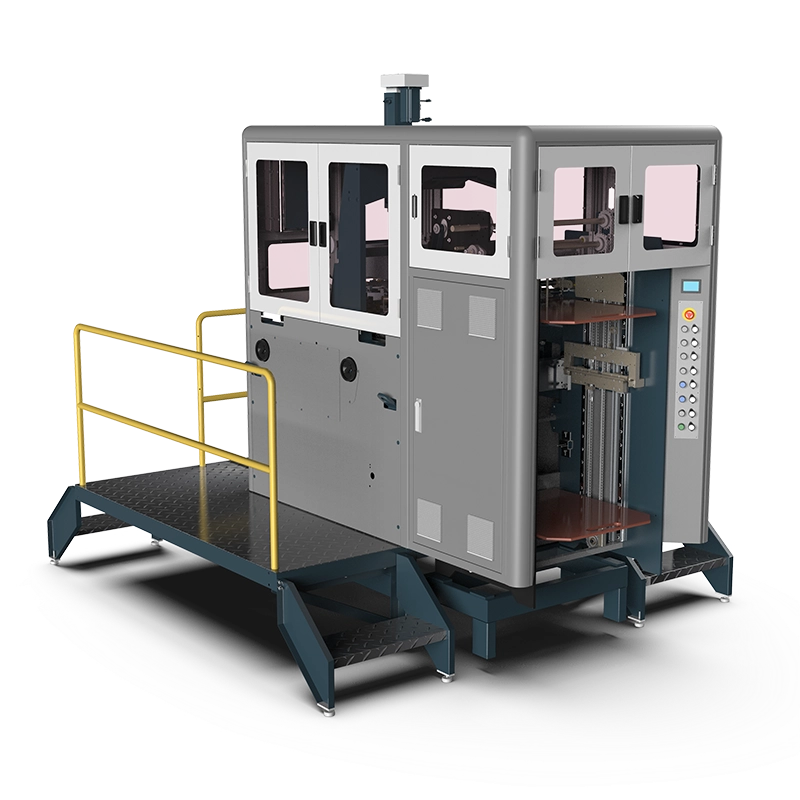

Corner pasting part with independent man-machine control and heating system;

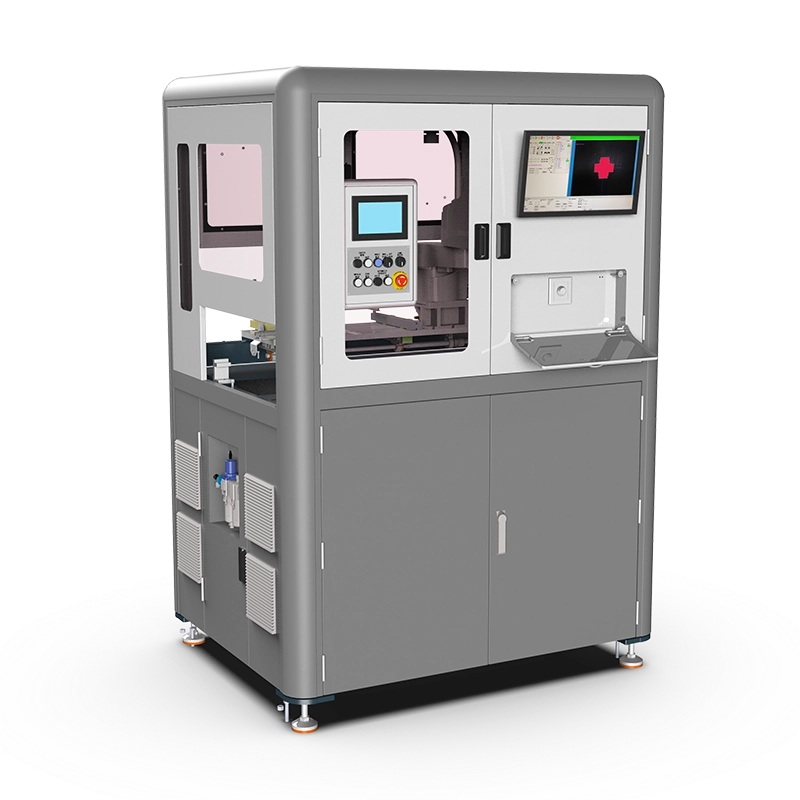

Multifunctional Robot Vision Image Positioning System (spotting accuracy ±0.05mm);
Wrapper can automatic lift and wrap box;
Automatic control system for glue viscosity (optional)；
Bottom mould use Piston type；
Main Slider and pull mold section synchronized.

Product Description

Model		HM-SC3046	HM-SC4354	HM-SC6461	HM-SC6471	HM-SC6481
Grey board Size D=Length, C=Width	Width (Max.)	420mm	600mm	820mm	880mm	980mm
	Width(Min.)	60mm	84mm	124mm	124mm	150mm
	Length(Max.)	420mm	500mm	580mm	680mm	780mm
	Length (Min.)	50mm	74mm	92mm	92mm	110mm
	Thickness T	1-3mm	1-3mm	1-3mm	1-3mm	1-3mm
Paper Size B=Length, A=Width	Length (Max.)	460mm	640mm	850mm	950mm	1010mm
	Length (Min.)	95mm	180mm	180mm	180mm	180mm
	Width (Max)	460mm	540mm	610mm	710mm	810mm
	Width(Min.)	60mm	90mm	95mm	95mm	95mm
	Thickness	80-160gsm	80-160gsm	80-160gsm	80-160gsm	80-160gsm
Paper Corner Edge	E	10-110mm	10-110mm	10-140mm	10-140mm	10-140mm
Finished Box Size	L(Max.)	300mm	400mm	600mm	600mm	600mm
	L(Min.)	40mm	60mm	100mm	100mm	120mm
	W(Max.)	300mm	300mm	400mm	400mm	400mm
	W(Min.)	40mm	50mm	50mm	50mm	60mm
	H(Max.)	120mm	140mm	150mm	190mm	250mm
	H(Min.)	10mm	10mm	12mm	12mm	15mm
Die Stoke		100mm	140mm	210mm	210mm	210mm
Paper Stacker High Max.		600mm	650mm	700mm	750mm	800mm
Greyboard Stacker High Max.		700mm	750mm	800mm	850mm	900mm
Glue Tank Volume		32L	35L	35L	35L	35L
Air Supply		460L/min, 0.8MPa	460L/min, 0.8MPa	460L/min, 0.8MPa	460L/min, 0.8MPa	460L/min, 0.8MPa
Speed		≤30pcs/min	≤30pcs/min	≤30pcs/min	≤30pcs/min	≤30pcs/min
Power/Voltage		30kW/AC380V	32kW/AC380V	35kW/AC380V	38kW/AC380V	40kW/AC380V
Power Consumption		7kW/h	8kW/h	8.78kW/h	9.5kW/h	10.5kW/h
Net Weight		5500kg	5500kg	5700kg	5900kg	6200kg
Machine Dimension		5400 x 3700 x 3000mm	5600 x 3900 x 3000mm	7100x4300x3300mm	7200x4500x3600mm	7400x4600x3900mm

Remark:

The Finished Box Max. sizes are determined by paper size.

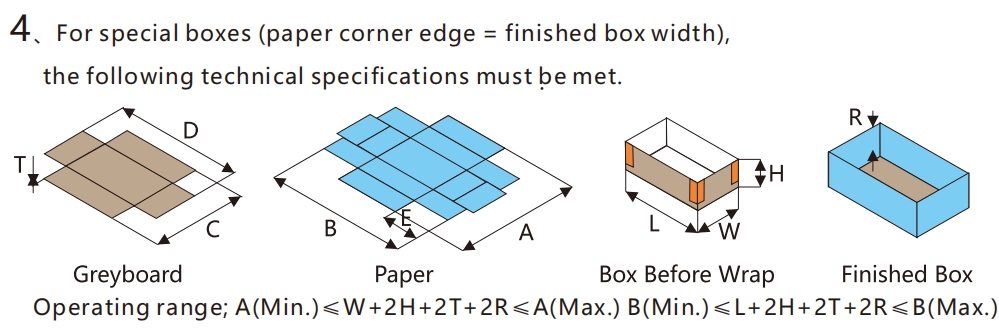

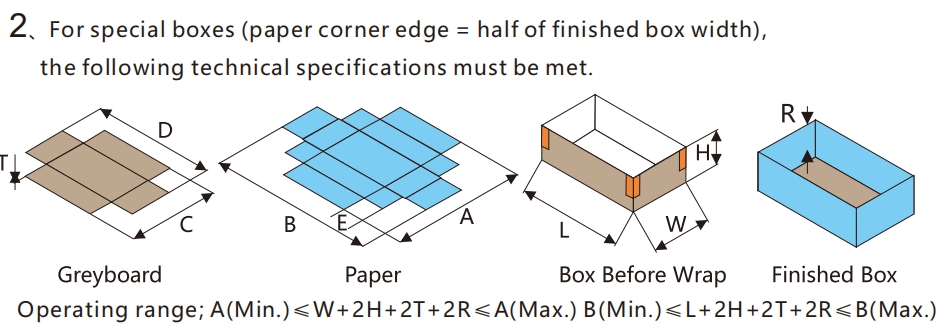

A(Min.)≤W+2H+2T+2R≤A(Max.); B(Min.)≤L+2H+2T+2R≤B(Max.)
Either the Max. Sizes or the Min. Sizes can not be fulfilled on the same box.
If finished box height is 110mm, the length＞80mm; when the length ＜80mm, the finished box height ≤90mm
The production speed of the rigid box machine is determined by the box size, the paper and the greyboard materials.
Seller doesn’t provide air compressor. (8atm=0.808MPa, 7.5kW compressor is needed).

Please contact us for free virtual consultation and demonstration.
