HM-ZD4354Lean Automatic Rigid Box Machine (Greyboard Assembly Type)

Short Description:

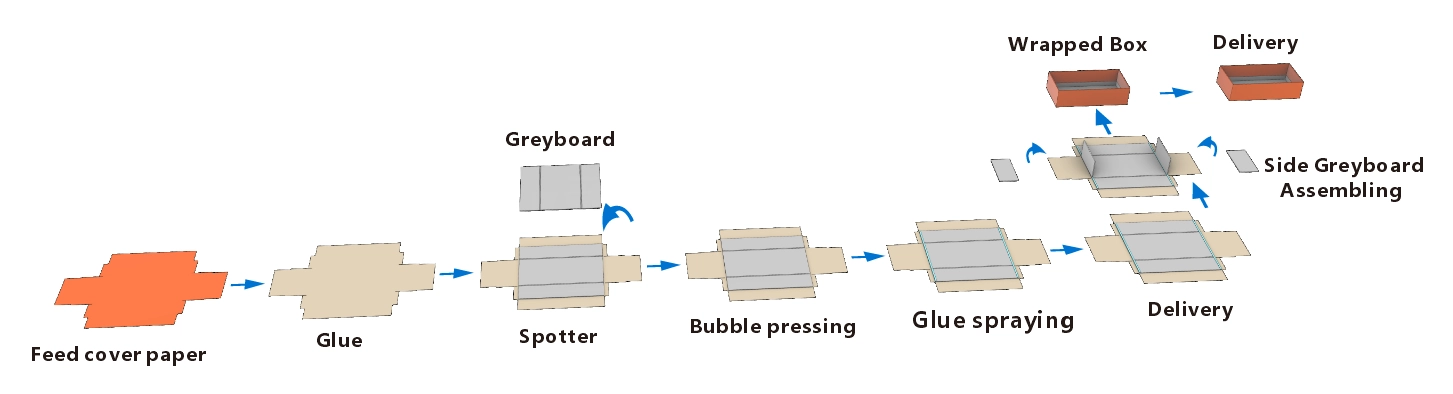

Features and function：

Suit to all kinds of rigid boxes in mass production;
Single Wrapper;
Parametric intelligent adjustment;
The long side and short side are layered and formed;
The cam box can participate in motion control as a whole;
Parameters adopts computer digital setting;
The box-out direction is parallel to the main conveyor belt;
Auto error stop and display;
Automatic feed paper and greyboard;
24-hour glue timing heating function;
Wrapper can input 300 product formulas;
Multifunctional Robot Vision Image Positioning System (spotting accuracy ±0.05mm);
Wrapper can automatic lift and wrap box;
Automatic control system for glue viscosity (optional)；
Bottom mould use Piston type；
Main Slider and pull mold section synchronized.

Product Description

Model		HM-ZD4354Lean
Grey board Size D=Length, C=Width	Length(Max.)	600mm
	Length (Min.)	100mm
	Width (Max.)	500mm
	Width (Min.)	80mm
	Thickness T	1.5–5mm
Paper Size B=Length, A=Width	Length (Max.) B	640mm
	Length (Min.) B	180mm
	Width (Max) A	540mm
	Width(Min.) A	90mm
	Thickness	80-160gsm
Finished Box Size	L(Max.)	400mm
	L(Min.)	80mm
	W(Max.)	300mm
	W(Min.)	60mm
	H(Max.)	140mm
	H(Min.)	10mm
Paper Corner Edge	E	10-110mm
Die Stoke		140mm
Paper Stacker High Max.		650mm
reyboard Stacker High Max.		750mm
Glue Tank Volume		35L
Air Supply		460L/min, 0.8MPa
Speed		≤30pcs/min
Power/Voltage		32kW/AC380V
Power Consumption		8kW/h
Net Weight		5500kg
Machine Dimension		8000 x 2500 x 3000mm

Remark:

The Finished Box Max. sizes are determined by paper size. A(Min.)≤W+2H+2T+2R≤A(Max.); B(Min.)≤L+2H+2T+2R≤B(Max.)
Either the Max. Sizes or the Min. Sizes can not be fulfilled on the same box.
The production speed of the rigid box machine is determined by the box size, the paper and the greyboard materials.
Seller doesn’t provide air compressor. (8atm=0.808MPa, 7.5kW compressor is needed).

Please contact us for free virtual consultation and demonstration.
